TECHNICAL DATA

• Stripping range  0,05-6 mm²

• Stripping length  3-20 mm

• Infeed length 22 mm + Strip length

• All-electric

• Weight 7,5 kg

TECHNICAL DATA

• Stripping range  0,05-2,5 mm²

• Stripping length 3-20 mm

• Infeed length 15 mm + strip length

• All-electric

• Weigth 7,5 kg

TECHNICAL DATA

• Stripping range 0,5-6 mm²

• Stripping length 13-30 mm

• Infeed length 32 mm + strip length

• All-electric

• Weight 7,5 kg

TECHNICAL DATA

• Stripping range 2,5-16 mm²

• Stripping length 3-20 mm

• Infeed length 22 mm + strip length

• All-electric

• Weight 10 kg

TECHNICAL DATA

• Strip 2-3 wires at the same time

• Stripping range 0,34-1mm²

• Strip length  5-10mm (3-8mm)

• Infeed length 15mm + strip length

• All-electri

• Weight 7,5kg

TECHNICAL DATA

• Automatic adjustment of strip diameter

• Stripping range 0,5-2,5 mm²

• Strip length  3-20 mm

• Infeed length 24mm + strip length

• Weight 7,5 kg

TECHNICAL DATA

• Small and easy to use stripper for both single and Multi-conductor cables.

• Strip length 1-50 mm

• Full or semi strip.

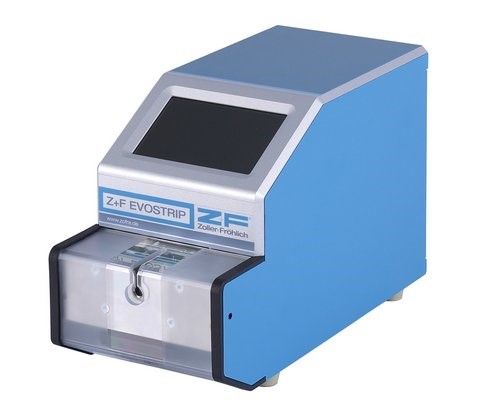

TECHNICAL DATA

• Extremely short stranded wire ends can be processed (< / = 9 mm resp. 9,75mm)

• Touch Screen Operation

• Simple and self-explanatory menu navigation

• Up to 100 memory locations

• Exact parallel guide of the blades heads

• Processing with die – blades, prismatic blades and flat stripping blades possible

• Blade change fast and easy without tools

• Sensor release of the stripping process

• Self – centring clamping jaws

• Self-regulating pressing power of the clamping jaws

• Air blow – out (to avoid isolation rests)

• Putting in the cable from above

Round cables up to 5,0 mm (0.2”) outer – ø

• Cross section from 0,15 – 4,0 mm²

• Stripping length 1,5 – 20,0 mm (0.06 – 0.79”)

TECHNICAL DATA

• Wire size 0,15 - 4mm²

• Strip length 1,5-15mm

• Outer diameter max 5mm, flat cable 8mm wide

• Air 3-6 bar

• Weight 3,5 kg

• Dimensions 95 x 280 x 165mm

TECHNICAL DATA

• Wire size 2 - 24mm;

• Strip length 5-160mm, opt. 400 - 1000 semi-strip

• Outer diameter max 24mm

• Elektro-pneumatic 230V & 6-7 bar

• Weight 29 kg

• Dimensions 380 x 635 x 260mm

TECHNICAL DATA

• Wire size 0,5-15 mm Outer diameter

• Flat cable max width 20 mm

• Strip length max 65 mm full strip, 250 mm semi strip With option

• Dimensions 340 x 340 x 150 mm

• Air 6-7 bar

• Weight 12,2 kg

TECHNICAL DATA

• Wire size 1-25 mm Outer diameter

• Flat cable max width 35 mm

• Strip length max 120 mm full strip, 450 mm semi strip with option

• Dimensions 430 x 550 x 200 mm

• Air 6-7 bar

• Weight 25 kg

TECHNICAL DATA

• Wire size 1-30 mm Outer diameter

• Flat cable max width 32 mm

• Strip length max 500 mm full strip, 750 mm semi strip with option

• Dimensions 470 x 1420 x 200 mm

• Air 6-7 bar

• Weight 46 kg

• Also available as 750 and 1000

TECHNICAL DATA

• Wire sizes 0,05-8,00 mm

• Strip lengths up to 15mm

• Performs medium to high volume stripping with minimal investment

• Utilizes pneumatic power with foot pedal actuation.

• Air supply 4-7 bar

• Weight 3 kg
