TECHNICAL DATA

• Crimping range 0.5 – 2.5 mm²

• Crimping length 8 mm

• Infeed length 30 mm

TECHNICAL DATA

• The UNIC-GV allows processing five ferrules on reel with different cross sections

• Ferrules on reel in the range of 0.5 – 2.5 mm² (AWG 20 – 14)

• Crimping lengths of 8 or 10 mm can be processed with no down time

• The user simply chooses the cross-section on a touch display

• No tool change neccessary

• Infeed length 27 mm + CL

TECHNICAL DATA

• For ferrules on reel in the range of 0.5 – 2.5 mm² (AWG 20 – 14)

• Crimping Length 8 mm

• Infeed length 35 mm + CL

TECHNICAL DATA

• Crimping range 0,5 – 2,5 mm²

• Crimping length CL 8 mm

• Infeed length 35 mm

TECHNICAL DATA

• Crimping range 0,14 – 0,34 mm²

• Crimping length CL 6/8 mm

• Infeed length 16 mm + CL

• Cycle time approx. 1,5 s

• Easy tool change

• Short tooling time

• Crimp quality conforms to DIN 46228

TECHNICAL DATA

• Crimping range 0,14 – 0,75 mm²

• Crimping length CL 5-10mm

• Easy tool change

• Short tooling time

• Crimp quality conforms to DIN 46228

TECHNICAL DATA

• For loose insulated Z+F ferrules

• Crimping range: 0,5 – 2,5 mm²(AWG 20 – 14)

• Crimping length 6-12 mm

• Infeed length 28mm + crimp length

• Easy tool change

• Short tooling time

• Crimp quality conforms to DIN 46228

• Easy tool change

• Cycle time 1,5 sec

TECHNICAL DATA

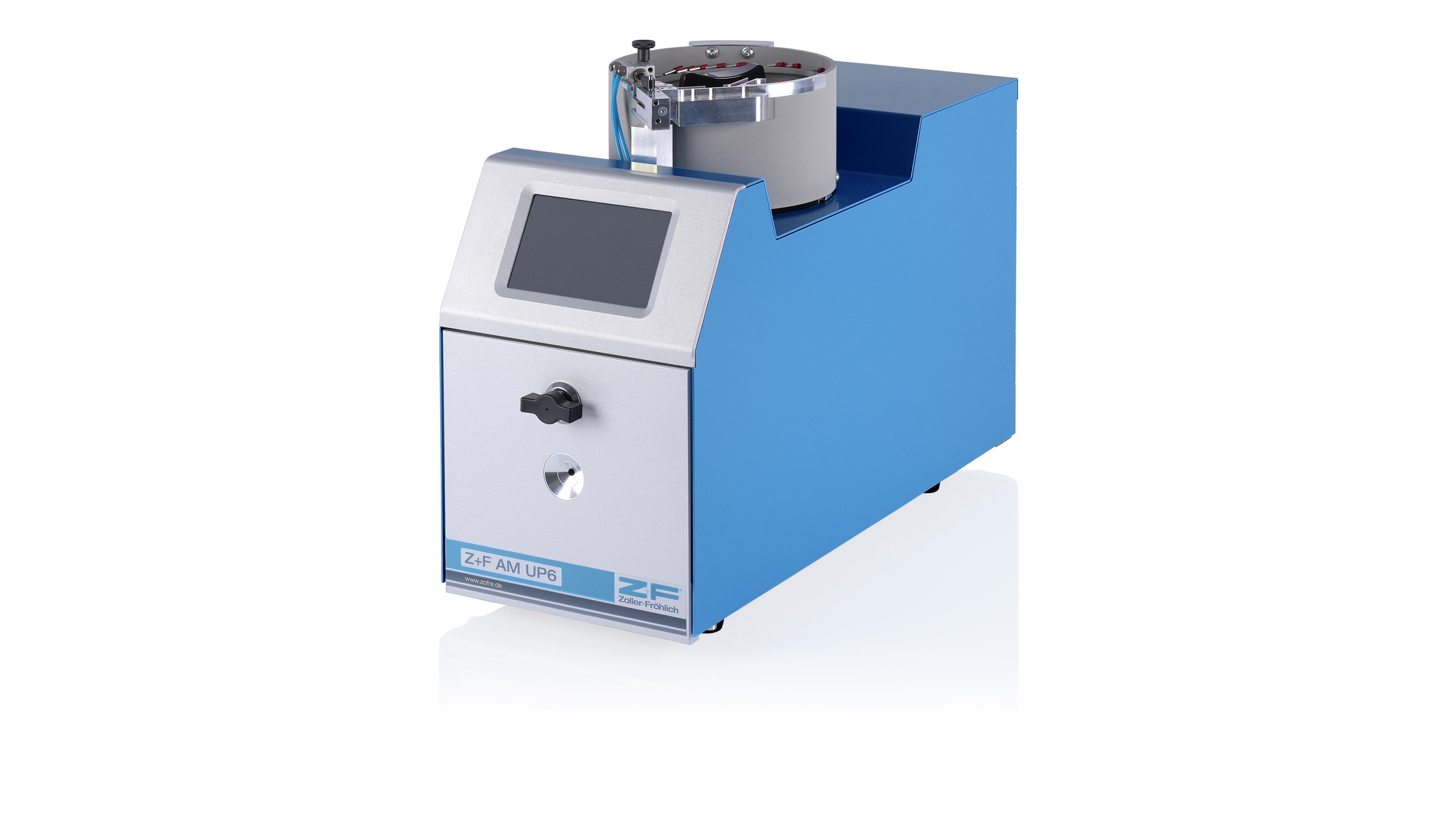

• modular stripper-crimper for rapid and reliable processing of loose male and female contacts

• Crimping range 0,08mm² - 2,5mm²

• The contacts are automatically fed by a feeding bowl

• The adjustments of the stripping and crimping depth is motoric.

• 50 different programs can be stored

• Infeed length 36mm

• Options
  • Adapter for special blades
  • V-radius blades
  • Z+F crimp force monitor
  • Other crimp forms: B-Crimp, hex
  • Special wire centralizer
  • Form blades

TECHNICAL DATA

• modular stripper-crimper for rapid and reliable processing of small, loose male and female contacts and for small cross-sections.

• for small cross-sections

• Crimping range 0,14mm² - 0,5mm²

• Possible contact length 6-14 mm

• possible contact diameter:1 – 3 mm

• The adjustment of the stripping and crimping depth is manually

• 50 different programs can be stored

• Infeed length 15mm

TECHNICAL DATA

• machine for rapid and reliable processing of loose male and female contacts

• Crimping range 0,14mm² - 2,5mm²

• The contacts are automatically fed by a feeding bowl

• The adjustment of the stripping and crimping-depth is motoric

• 50 different programs can be stored

• Standard is a 4/8-indent crimp corresponding to MIL 22520/1-01

TECHNICAL DATA

• for rapid and reliable processing of loose insulated Z+F ferrules

• Crimping range 4,0mm² - 10mm²

• Crimping length  8-18 mm

• Infeed length 28mm + crimp length

TECHNICAL DATA

• Modular stripper-crimper for rapid and reliable processing of loose uninsulated Z+F ferrules

• Crimp range 4,0mm² - 10mm²

• Crimp length 9-18 mm

• Infeed length 28mm + crimp length

TECHNICAL DATA

• For loose turned contacts

• Crimping range 0,25 mm² - 4,0mm²

• Infeed length 36 mm

• Automatisk matning av kontakter

• The adjustment of the stripping- and crimping depth is motorical

• Up to 50 different programs can be stored

TECHNICAL DATA

• This machine allows quick and reliable processing of loose insulated Z+F ferrules

• Crimping range 0,5mm² - 2,5mm²

• Crimp length  6, 8, 10 mm

• Infeed length 27mm + crimp length

TECHNICAL DATA

• Electropneumatic stripper-crimper for quick and reliable processing of loose Z+F twin ferrules

• For loose Z+F twin ferrules

• 2 x 0.5mm²  to 2 x 1.5 mm²

• Crimp length 8mm

• Infeed length  35mm
