Material cutting machines


Z+F EVOCUT

  • 5" display
  • 0,08 – 10 mm² (AWG 28 – 8)
  • Max OD 8mm
  • Easy to use

Video

Global Cut 100 D



The universal cutting machine ”Made in Germany”

Our Specialist for Tubs, Ribbon Cables and Strands.



  • All electric
  • 5 inch color display
  • The material chute is movable, so even stiff materials can be easily processed
  • Material Thickness max 12 mm
  • Stranded wires up to 35mm²
  • Max Cutting Width 100 mm
  • Feed Rate 1,5m/s in 9 steps
  • Program Memory 99.

      Video

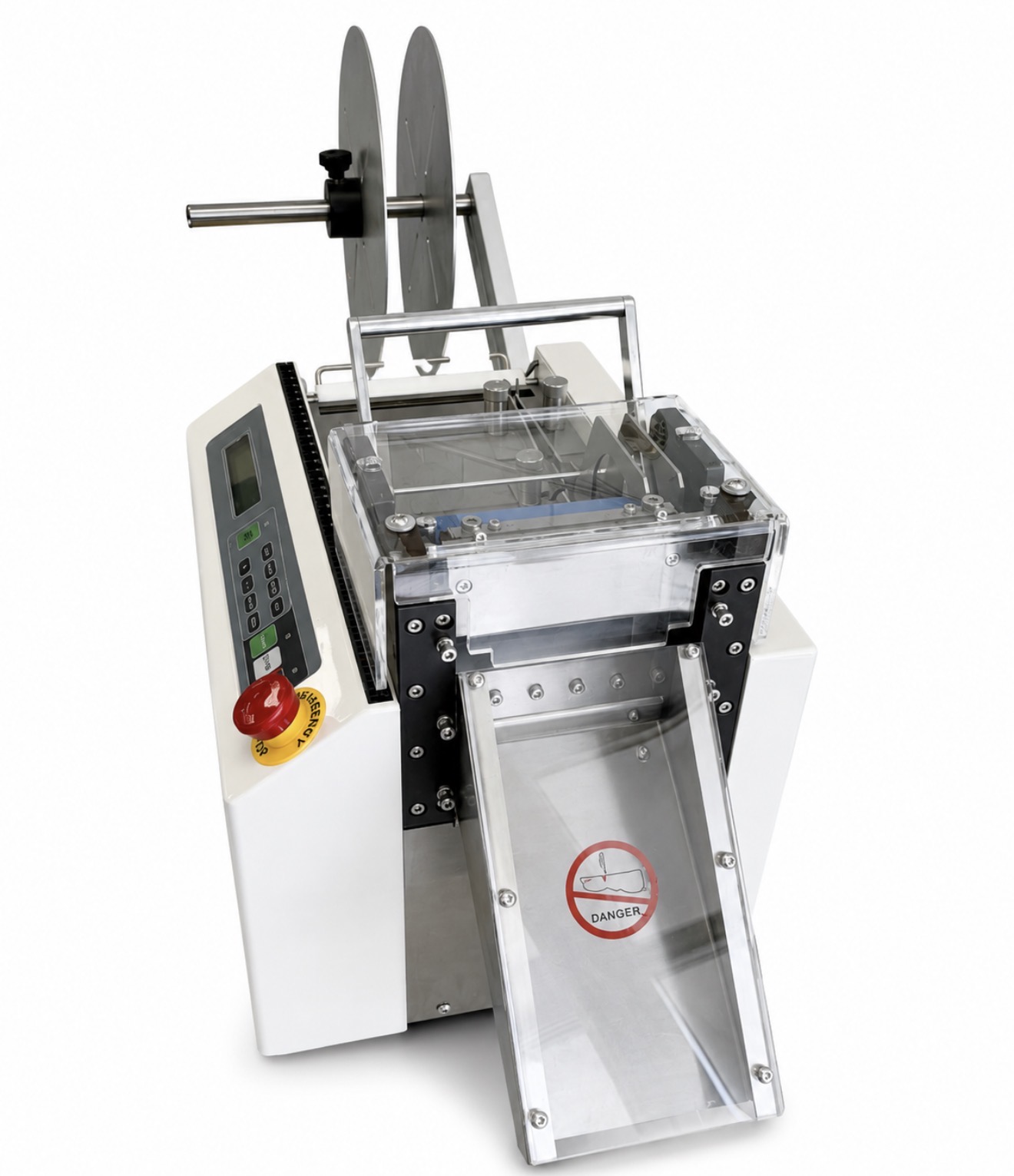

Global cut 100

The universal cutting machine ”Made in Germany”

Our Specialist for Tubs, Ribbon Cables and Strands.



  • All electric
  • Material Thickness max 12 mm
  • Stranded wires up to 16mm²
  • Max Cutting Width 100 mm
  • Feed Rate 1,8m/s in 9 steps
  • Program memory 99.

      Video

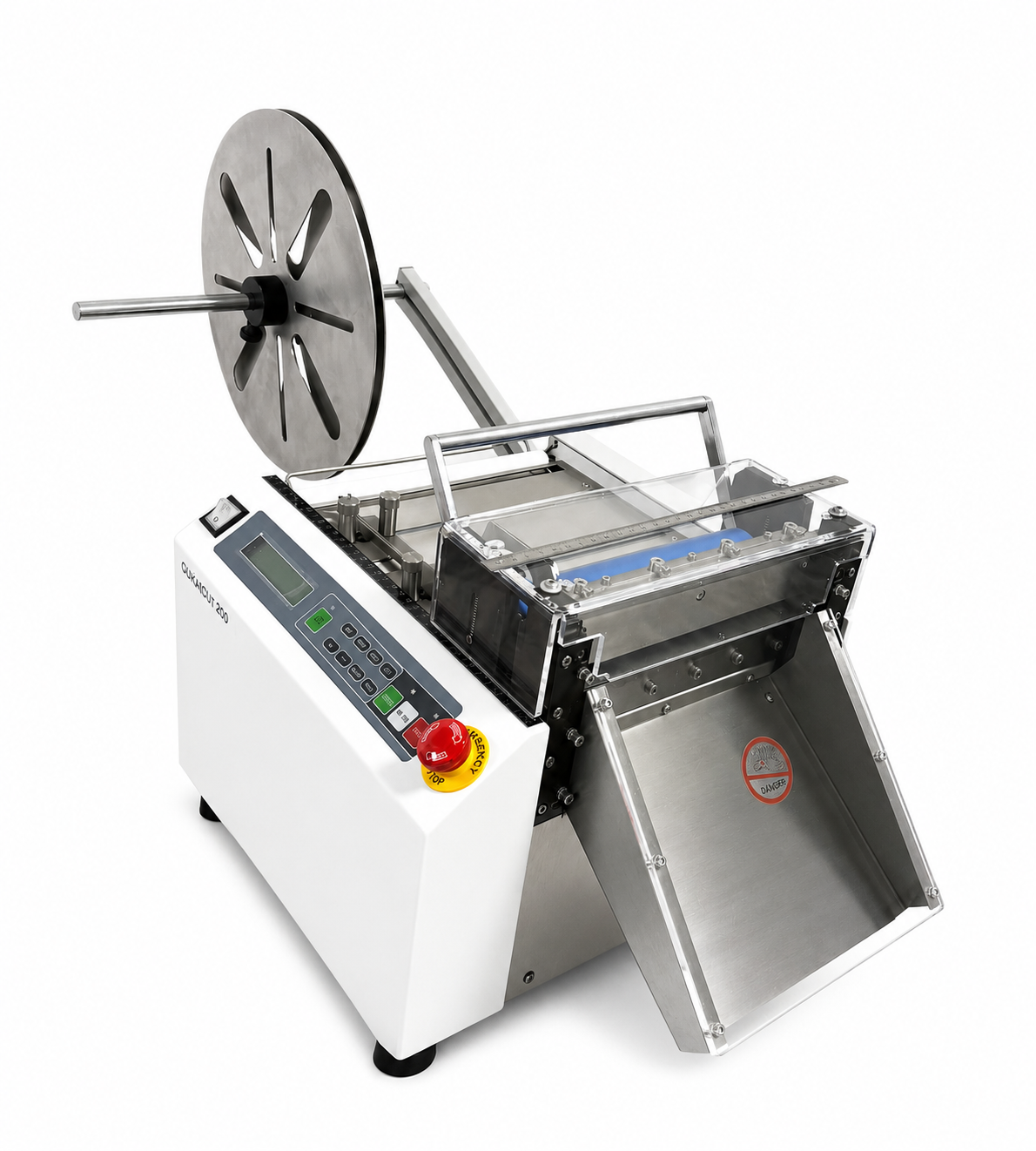

Global cut 200

The universal cutting machine ”Made in Germany”

Our Specialist for Tubs, Ribbon Cables and Strands.



  • All electric
  • Material Thickness max 12 mm
  • Stranded wires up to 16mm²
  • Max Cutting Width 200 mm
  • Feed Rate 1,8m/s in 9 steps
  • Program memory 99.



Ulmer SM15-2PT

  • Universal cutting machines for round and flat cable, wire, PVC hoses, fabric hoses, foil, rubber, paper etc.
  • Admission height centre ø 30 mm
  • Admission height overall width 17 mm
  • Admission width 150 mm
  • Max. cable cross section 70 mm² Cu stranded / 10 mm² Cu solid
  • Touchscreen for easy programing

    Video

Ulmer SSM60 Touch



  • Hose cutting machine suitable to cut closed and slitted corrugated tube, PVC, rubber hose as well as further types of hoses.
  • Outer diameter of up to 60 mm
  • max length 999,999mm
  • In steps of 0,1mm

  Video

Ulmer Cutting Machines



Universal cutting machines for round and flat cable, wire, PVC hoses, fabric hoses, foil, rubber, paper etc.

Different cutting systems are available.



SM15/30 2PLC

  • Material feeding: up to 1,0m/s
  • Cutting length: max 99 999 mm
  • Material height upp to 15, 30 or 40mm
  • Cutting width: 150 mm. SM30 300mm
  • Belt feeding
  • Interface for pre feeder and collector
  • Dimension: 650 x 430 x 570 mm
  • Weight: 68 kg
  • Power supply: 230 V / 250W
  • Air: 6 bar

    Video

WSM30/60



Programmable elektro-pneumatisk cutting machine for corrugated tube

  • Laser light barrier indicate the tubehill.
  • Rotating cutting head with up to 3 blades cuts exactly at the corrugation peaks with a clean and all around cut.
  • Adjustable feed speed up to 1,0m/sec.
  • Tube diameter 7-32mm. WSM 30 E upp to 60mm
  • Cutting length: max 99 999 mm
  • Belt feeding, servo driven
  • 6 kits of guide tubes is included as standard
  • Slitting unit available as option
  • Dimension: 900 x 500 x 1800 mm
  • Weight: 180 kg
  • Power supply: 3x400 VAC / 16A
  • Air: 6 bar

Artos C4/C5

  • Robust, durable design for long life.
  • Power-stroke mode for powerful applications.
  • Two modes, depending on width of material.
  • Multiple guide kits for feeding a variety of materials.
  • Max Cutting Width (C-4) 150 mm
  • Max Cutting Width (C-5) 342 mm
  • Material Length Max 99.9 m / Min 1 mm
  • Material Thickness (C-4) 12.7 mm
  • Material Thickness (C-5) 6.3 mm
  • Feed Rate Variable from 0.16 to 2.5 m/sec
